FRP Pebbled Panel
FRP Pebbled Panel is what HIGOAL spent massively on developing. Higoal FRP Pebbled panels have characteristics of resistance to corrosion, mould, humid, static resistance.
Max width: 2750mm
Standard thickness:1.2mm/1.5mm/2.0mm/2.5mm/3.0mm
Standard color: white,creamy,grey
Excellent decorative effect; Glossy convex pattern will not bring cleaning difficulty.

Customized thickness: 1.0mm/3.5mm/4.0mm/5.0mm
Customized color: All RAL
玻璃钢颗粒板
FRP Pebbled Panel Material:
  Surface layer: 300μm isophthalic gel-coating
  Base layer: Resin--Unsaturated Ortho resin
  Reinforced fiberglass-- E-glass(alkali-free)

FRP Pebbled Panel features:
1) Machine continuously made flat panels, no limit on length;
2) Anti-impact: much better stiffness and strength than plastic, due to fiberglass reinforced;
3) Fire resistant: made by thermosetting resin;
4) Mildew resistant: Effectively inhibit the growth of mildew;
5) Easy install: No other tools are needed except for rivet or glue only;
6) Anti-corrosive: stay good condition immerged into 10% Hydrochloric acid or 3% NAOH solvent for long time;
7) Easy cleaning: It can be easy cleaned by steam or high-pressured squirt gun;
8) Extreme temperature resistant: Withstand temperature at -40℃ -110℃ for long time;

HIGOAL FRP Pebbled panel has an important feature: easy-cleaning. FRP panel with gel coat on the surface is exceptionally resistant to scratch, negligibly effected on by blood, detergents and bleach disinfectant. FRP gel coat panel is the ideal panel on cleaning.

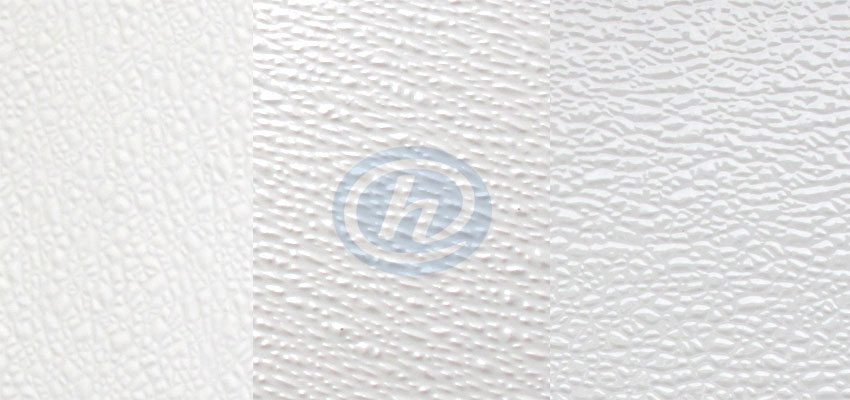

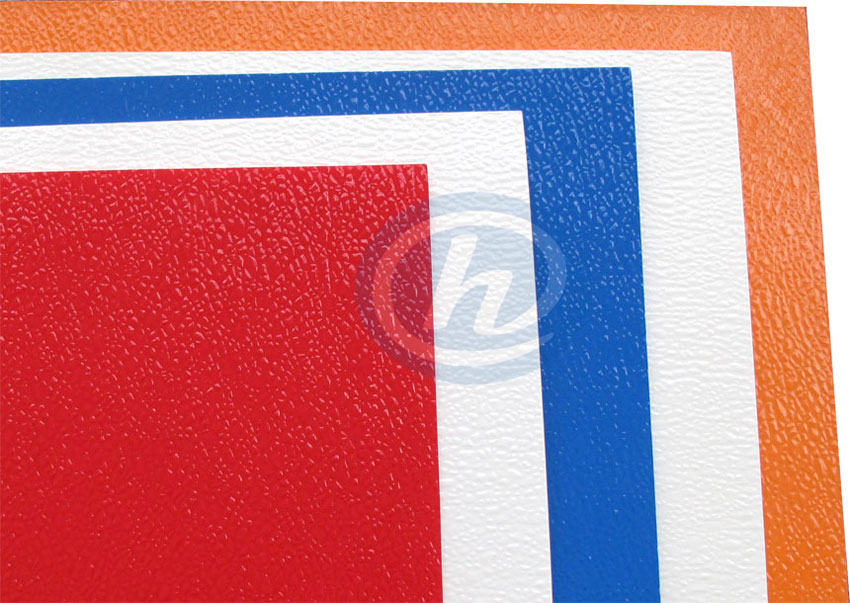

玻璃钢颗粒板可以有不同的表面效果,合高也能按需定制花纹。
FRP凯斯板不同表面花纹

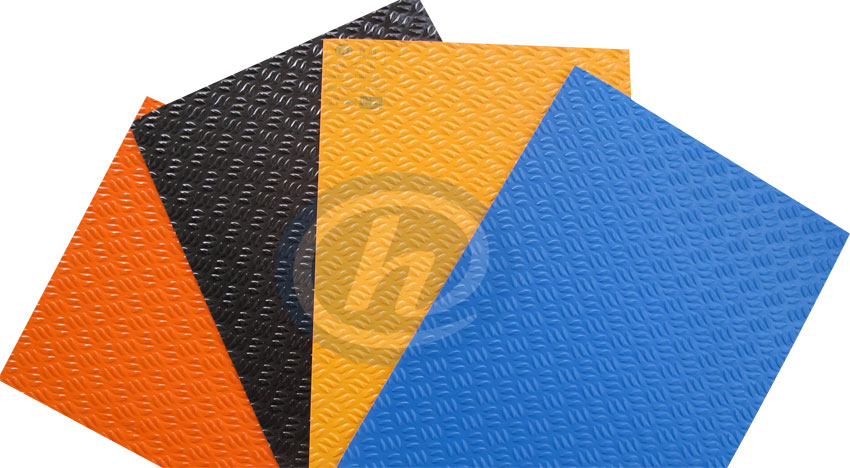

合高另有开发特殊三叶纹板,如下图所示:
Max width: 1200mm
Standard thickness:1.5mm/2.0mm/2.5mm/3.0mm
Standard color: white,grey

Customized thickness: 3.5mm/4.0mm/5.0mm
Customized color: All RAL
FRP三叶纹板

FRP Sandwich Panel:FRP panel can be combined as sandwich panel, with XPS, sypsum, plywood, honeycomb, etc.
玻璃钢复合夹芯板

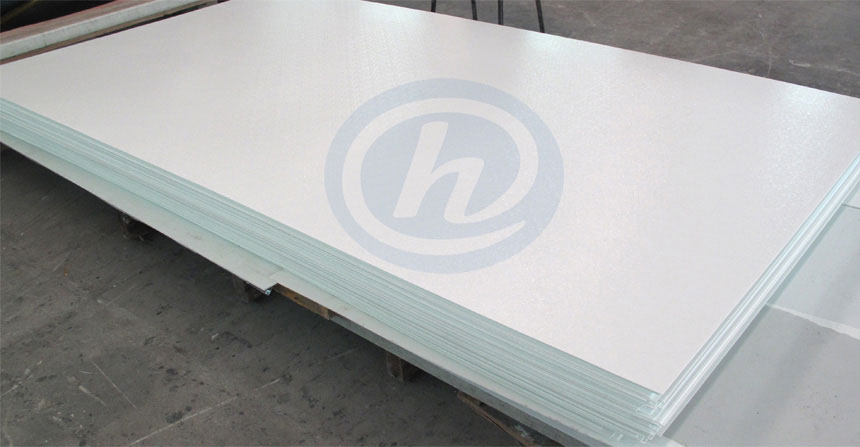

Standard sheet size: 1220x2440mm

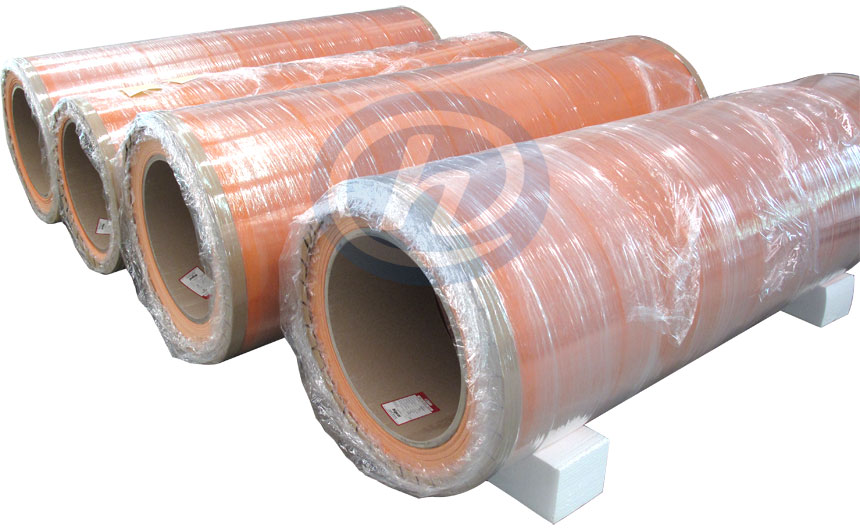

Can be packed as a Fiberglass Panel roll with length: 100-200m/ roll.
玻璃钢凯斯板片材
FRP凯斯板卷板
厚度超过3.5mm时,不方便成卷,建议做成片材。

There is a gel coat layer without glass fiber on the surface of FRP gel coat panel, which makes the panel more rigid, and glossy, better performing in appearance and resistance to UV and yellowing. The gloss is retained to enhance the weathering-proof property. As there is no glass fiber contained in gel coat layer, the its surface toughness is relatively poor. It might crack, when the gel coat layer suffer from excessive tensile strength, specially during making sandwich panel.

Some factors cause FRP gel coat panel crack:
1. Bending diameter: FRP panel contains reinforced glass fiber fabric, which makes it different from common thermoplastic. Its bending diameter must be larger than 500mm, or it may be cracked.
2. Impact: Manufacturing the sandwich panel, if there is protruding spot, such as sand grain or other substance, it will easily crack during combining.
3. Loading & unloading, and transporting: for panel coil, it must be rolled up to a cylinder with diameter larger than 500mm, or will easily damage the panel.

Higoal adopts automatic machinery to roll up FRP panel, also is strict and experienced on packing and transportation. There is no possibility of panel breakage before delivery. Higoal do not accept any returned panels after unrolling, unless given a reasonable statement.
